Description
Details

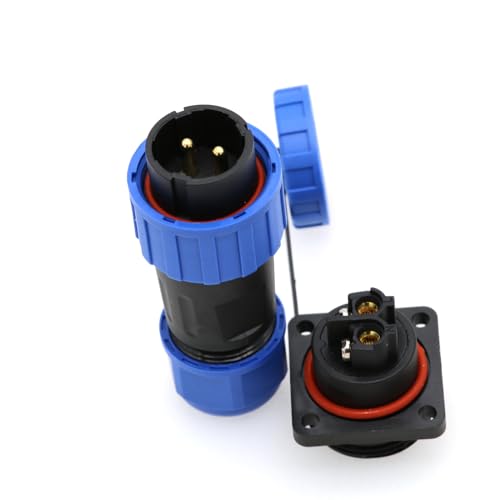

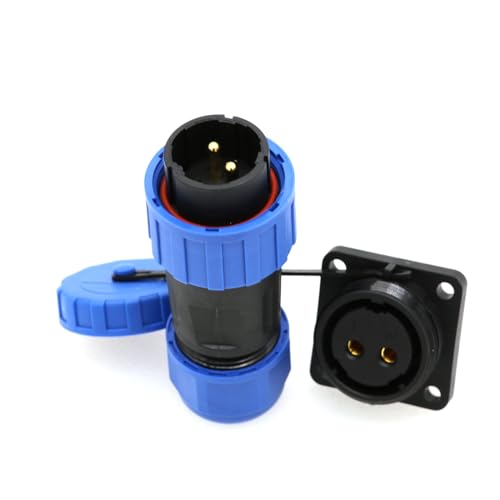

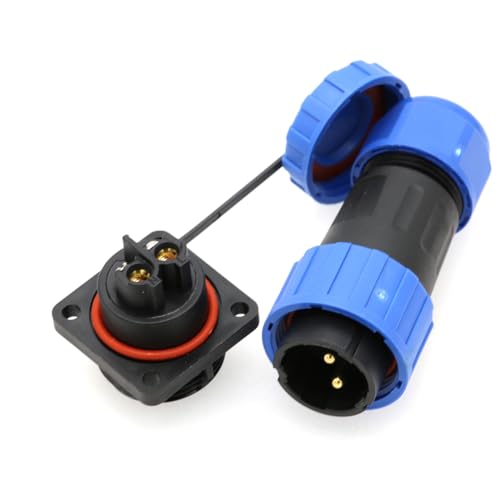

TY20 Screw Connection 2-7-Pin Back Nut/Flange/Docking/Square Cable Connector (2-Pin 25A, Square Series), 2 polig 25A: TY20 2 Pin Nut Waterproof No Welding Plug Screw Crimping Panel Mount Male Female Female Connector Electrical Cable Connector.Applicable Wire Outer Diameter Range: 6.0~11.5mm. Rated current/voltage: 25 A/380 V; standing voltage: AC 1500 V; contact diameter: Φ2.8 mm x 2; contact resistance: 1 mΩ; insulation resistance: 2000 mΩ; wire thickness: 4 mm²/12AWG.
Key features
- TY20 2 Pin Nut Waterproof No Welding Plug Screw Crimping Panel Mount Male Female Female Connector Electrical Cable Connector.Applicable Wire Outer Diameter Range: 6.0~11.5mm
- Rated current/voltage: 25 A/380 V; standing voltage: AC 1500 V; contact diameter: Φ2.8 mm x 2; contact resistance: 1 mΩ; insulation resistance: 2000 mΩ; wire thickness: 4 mm²/12AWG
- Connection mode: solderless screw connection; temperature range: -25°C – 85°C; plug-in times: more than 500 times. Threaded wiring for more comfort efficiency and repeated use
- Colour: Square Series
- Size: 2 polig 25A
Product specifics
- Brand: ZBLZGP
- Category: Cable Connectors
- Size: 2 polig 25A
- Colour: Square Series
- Model: TY20
- Part number: TY20
