Description

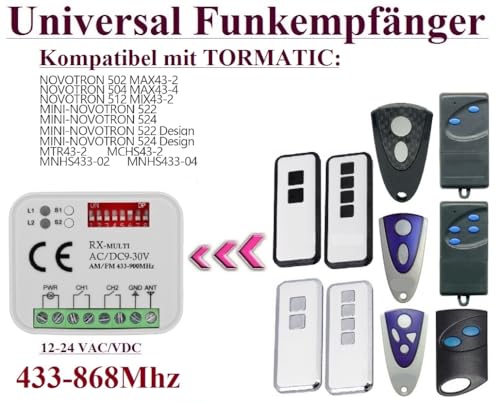

This universal receiver is compatible with the following Tormatic remote controls: Tormatic MIX 43-2 / MAX 43-2 NOVO 502 / MAX 43-2 NOVO 502 / MNHS433-02 MNHS433-04 / MCHS43-2 / Black Design 433.92Mhz. 1. Brand Selector Switch: With 8 DIP switches, the user can make a different combination for different remote control brands. The brand selection list can be found in the included instructions (English language not guaranteed). For Tormatic 433.92 MHz remote controls, slide the DIP switch 5 upwards. 2. Learn button and LED: there are 2 independent channels. Each channel has an independent learning button S1, S2. 3. Current input selector switch: this receiver works with AC/DC 12V ~ 30V. Shorten jumper 1 & 2 for 12 V power supply; shorten 2 & 3 for 24 V power supply. 4. Programming process: a) For Tormatic 433.92 MHz remote controls, slide the dip switch 5 upwards. b) Press the learning button. The Will LED lights up. c) Press the desired button on the Tormatic remote control. The LED will start flashing, which means that the remote control has been successfully programmed. 5. Clear all data from the recipient’s memory: press and hold the learn button. The LED starts flashing. Press and hold the Learn button until the LED goes out. All stored remote controls are permanently deleted and cannot be restored. Technical data: Frequency: 433 – 868 MHz (rolling code / fixed code) channels: 2 power supply: 12-24 V AC/DC (power supply not included). Handheld transmitter memory per channel: 200. If you want to increase the range of the remote control reception to 150-200 metres, you can connect this antenna: https://www.store.de/dp/bp/bp. 01MZY00APVN/
