VOLTCRAFT MSB-200 Test Lead [Slat Plug 2 mm – Slat Plug 2 mm] 30.00 cm Green Pack of 1

Description

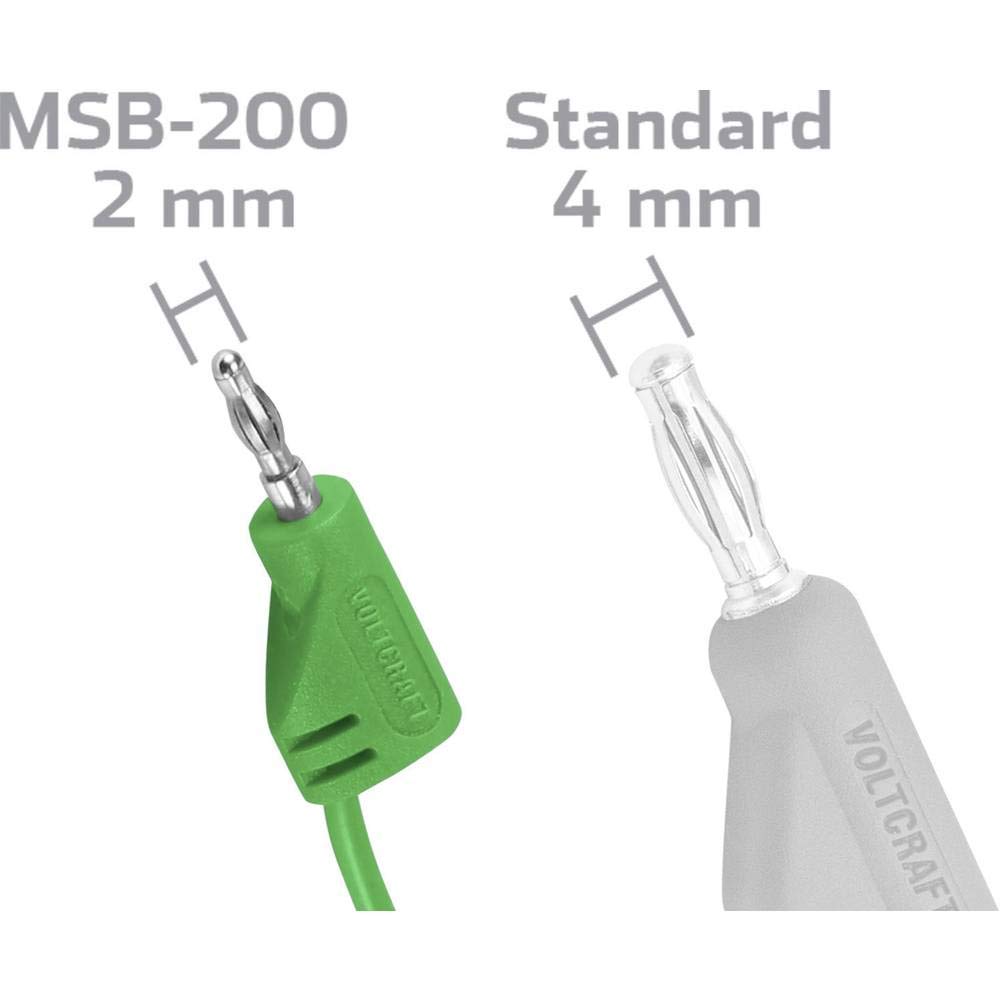

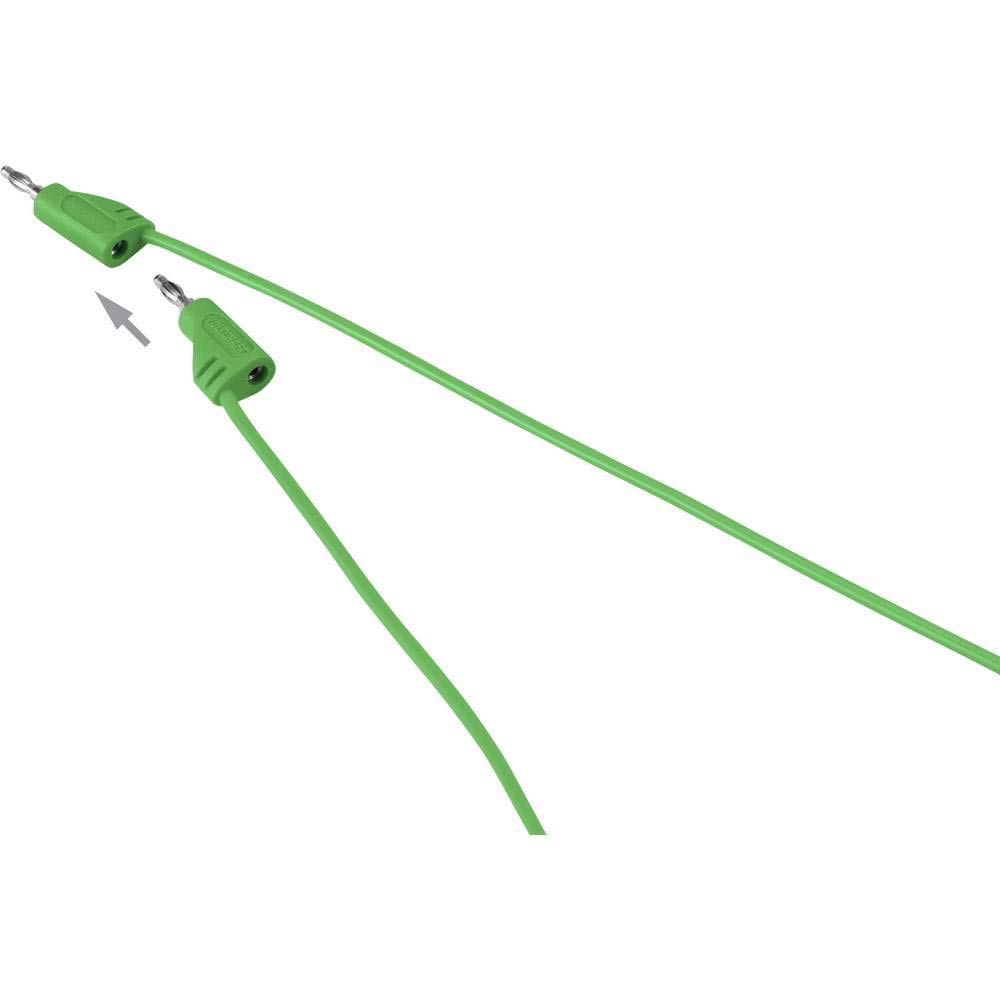

The VOLTCRAFT MSB-200 is a highly flexible and stackable measuring cord that is made of heat-resistant silicone. Cable insulation with wear indicator. The VOLTCRAFT MSB-200 measuring cord is suitable for development cards, digital and analog signals as well as special measurement tasks. The rated intensity is 2.2A and the rated voltage is 30V/AC (alternate voltage) and 60V/DC (continuous voltage). Extremely flexible The material used for the cable is extremely flexible. Unlike more rigid materials, tangling cables is almost impossible. Increased tensile strength. Tear-resistant plastic optical fibres increase tensile strength and durability. Heat resistant The measuring cable is insulated by silicone and insensitive to heat from soldering irons. For your safety the two-tone measuring cord has double insulation. If the first insulation layer is damaged, a layer of another colour is visible. This wear indicator lets you know when to replace the cable. For safety reasons, replace damaged measuring cables immediately. The nickel-plated surface treatment of the 2 mm blade connectors ensures a wide range of operating cycles. Technical data: Colour: Green · Rated current: 2.2 A · Diameter / plug type: 2 mm · Product dimensions: Height: 13 mm · Product dimensions: Width: 6 mm · Temperature range: -10 to 70 °C · Cable length: 0.3 m · Material: PVC · Contact material: Ni · Cable section: 0.2 mm2 · Cable length: 30 mm · Connector voltage: DC
