Description

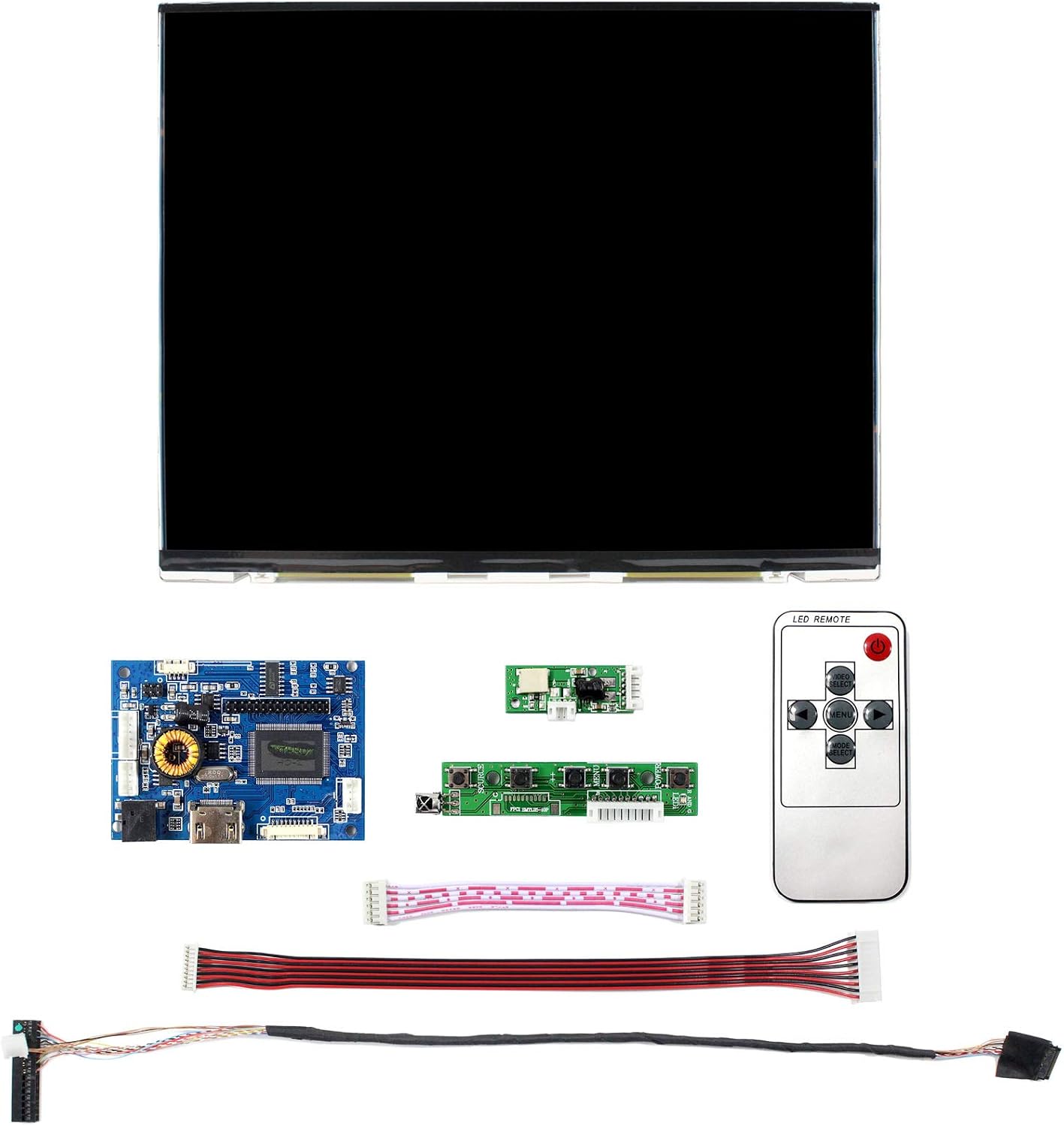

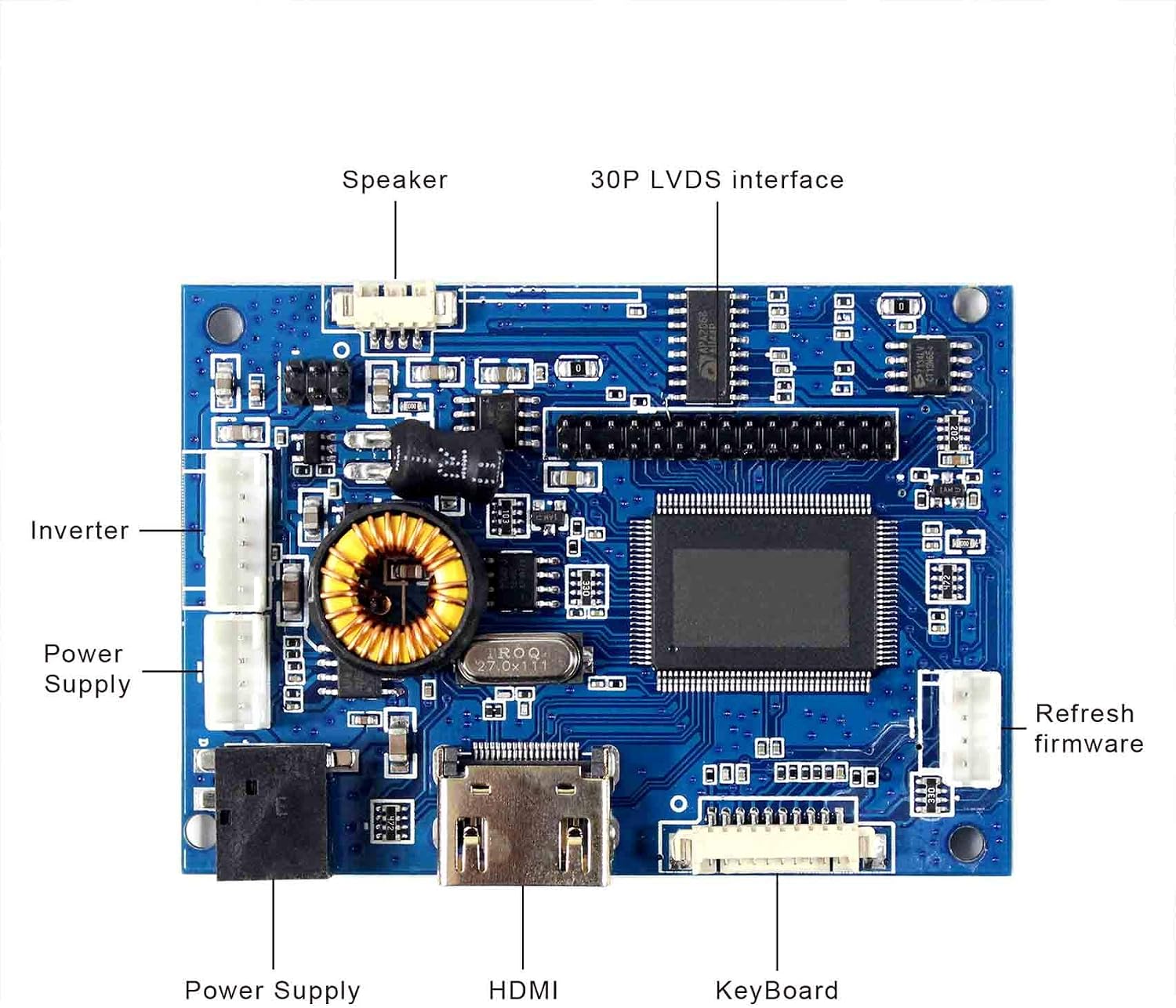

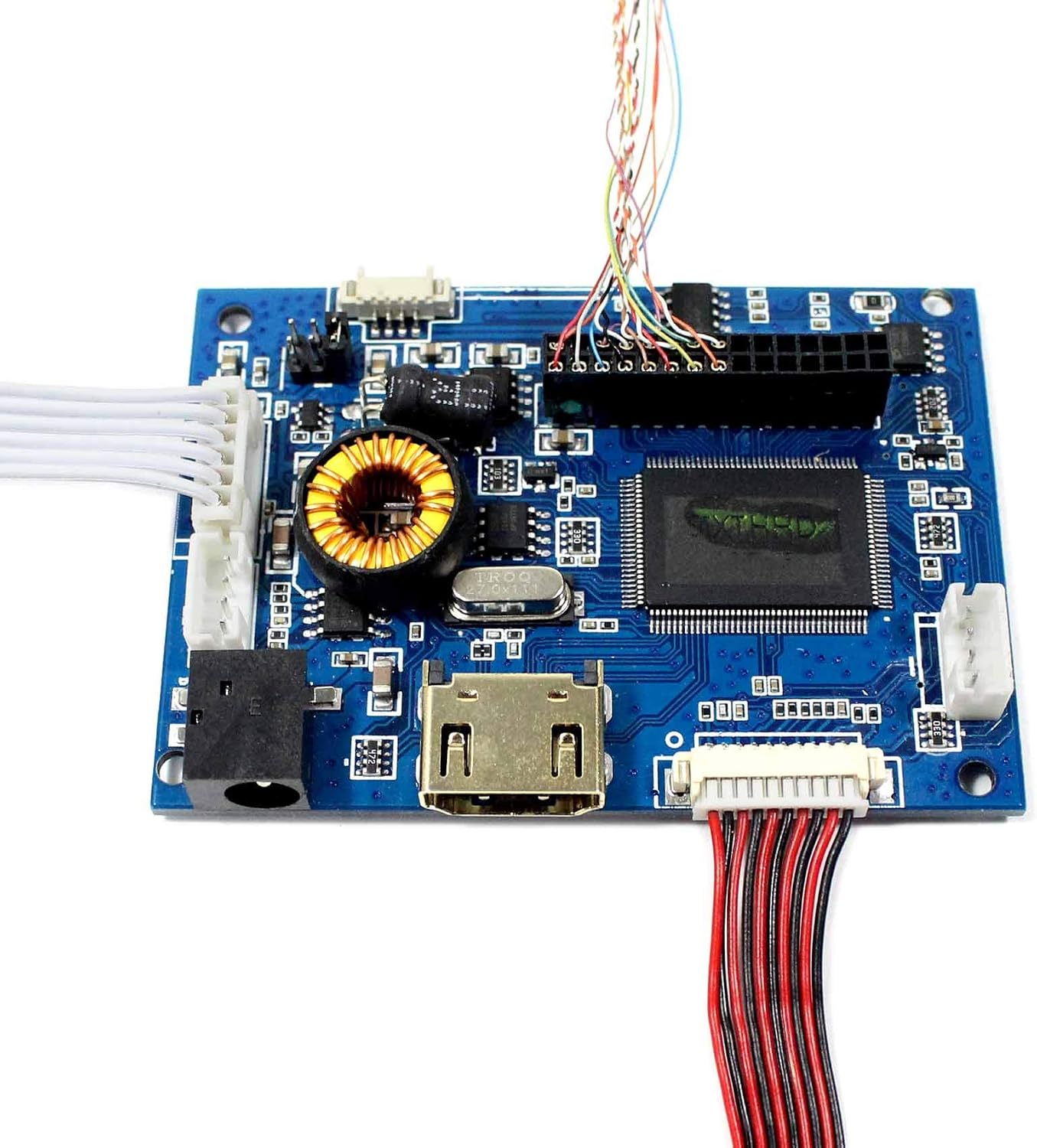

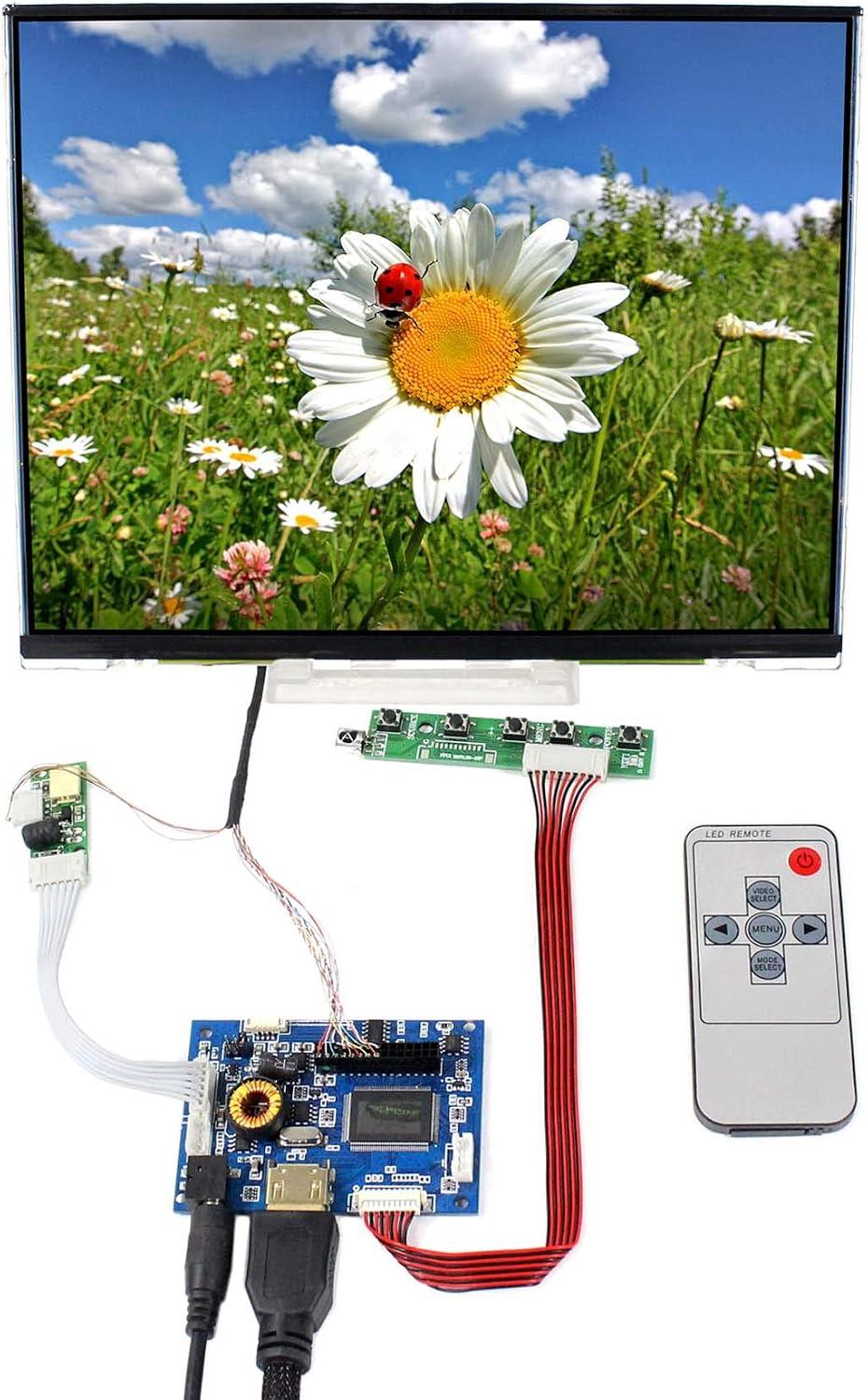

LCD Controller Board: HDMI LCD Board Work for LVDS Interface LCD ScreenInput Power Adapter: 12Vdc More than 2A In Standby Model When Not Input SignalStandby Model Video Input: HDMI Audio Input: HDMIAudio Output: Speaker (4Pin PH2.0 connector)OSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 74mm x 53mm x 12mm10.4″ LTD104EDZS 1024×768 LCD Screen:Display Mode IPS, Normally Black, TransmissiveResolution 1024RGB)×768Outline Size 219.1× 173.8×6.3 (H×V×D)Display Area 210.432×157.824 (H×V) Brightness 245 cd/m² (Typ.)Contrast Ratio 250:1 (Typ.) (TM) Viewing Angle 60/70/70/60 (Typ.)(CR≥10) [Left / Right / Up / Down]Signal Interface LVDS(1ch 6bit) Connector 25PinBacklight WLEDInput Voltage 3.3V (Typ.)Packing list:1× HDMI Audio LCD Controller Board1× 10.4″ LTD104EDZS 1024×768 LCD Screen1× LVDS Cable1× Keyboard With Cable1× Remote Control (Battery Not included)
