Description

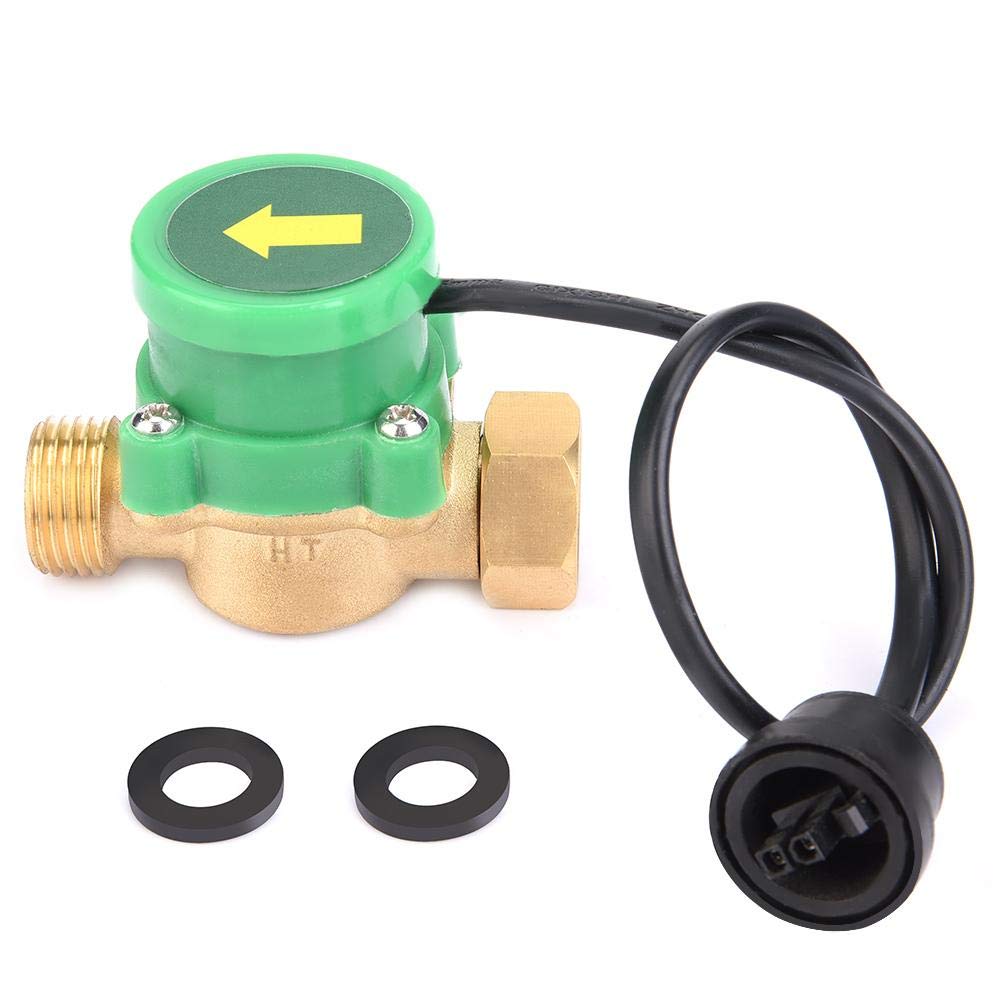

Turn on the water equipment and water will flow in pipeline. Water impulse induction door to rotates towards the direction of water, and magnetic control device rotates together, which will trigger the sensing elements when it reaches a certain position, to switch on the household pipeline boost pump. When water flow is turned off, induction door drives magnetic control device to a certain position under the action of the reset spring, to switch off pump. Specification: Model: HT-200 Rated Voltage: 220V Overload Current: 1.5A Connection Thread: G1/2-G1/2 Suitable Liquid: Water or other liquid of similar physical and chemical property Liquid Pressure: <0.6Mpa Liquid Temperature: <70℃ Weight: 183g / 6.5oz (approx.) Package list: 1 * Flow Switch 2 * Gaskets
