Description
485 Converter (B), Active Digital Isolator, Rail-Mount Support, 600W Lightningproof & Anti-Surge, Multi-Isolation Protection

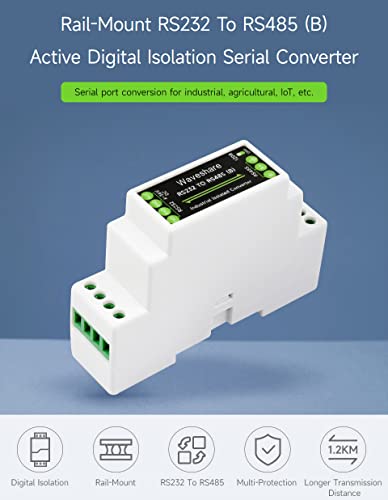

1.Rail-Mount RS232 To RS485 (B)
Active Digital Isolation Serial Converter
Serial port conversion for industrial, agricultural, IoT, etc.
2.Primary Function
Converting The RS232 Signal Into Balanced Differential RS485 Signal
For Interface Converting, Expanding Nodes And Long-Distance Communication
3.1200m Long Distance Transmission
Stable Transmission On Rate Of 300~115200bps, About 1200m Transmission Distance Of RS485, About 15m Transmission Distance Of RS232
4.Rail-Mount Support
Easy To Combine Multi Rail-Mounted Serial Server Together, More Freely
5.Multiple Protection, Safe And Stable
Onboard power and signal isolation, provide stable isolated voltage, high reliability and strong anti-interference. Onboard Lightningproof Diodes and TVS
(Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic.
Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage protection, improves shock resistance
Application Examples
The RS232 TO RS485 (B) can be widely used for point-to-point, point-to-multipoint, long distance cascaded communication network between two hosts, or
between host and MCU/Peripheral. It also can be used in the application scenarios that require RS232 to RS485 conversion such as Industrial
Automation and IoT.
Development Resources
https://www.waveshare.com/wiki/RS232_TO_RS485_(B)?store

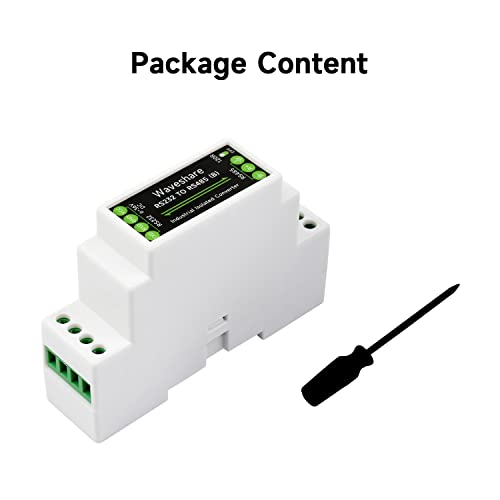

Package Content
RS232 TO RS485 (B) x1
Screwdriver x1
Note
Please contact us via store message if you have any problem.
