Description
Details

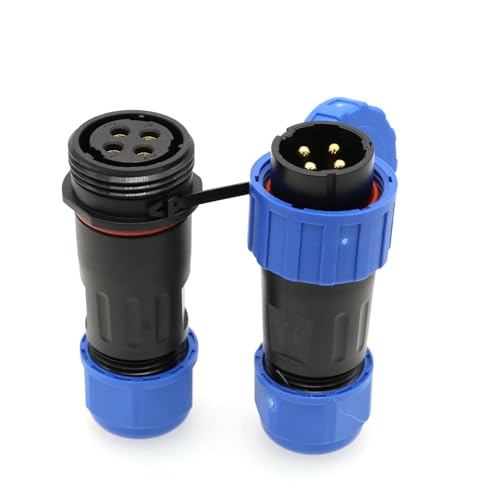

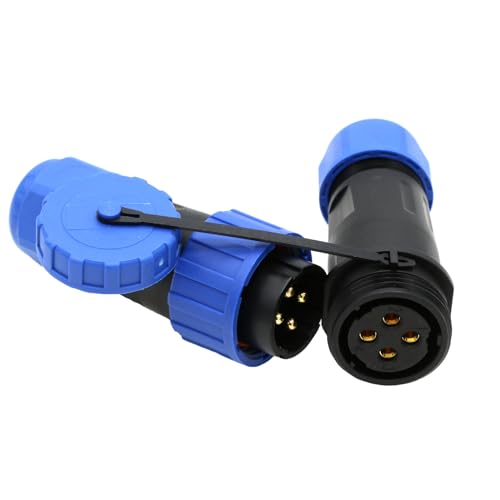

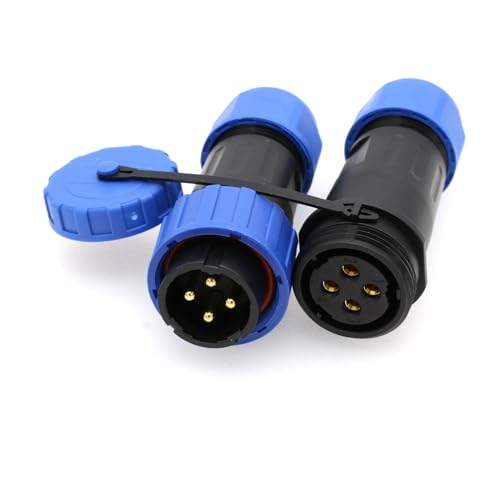

ZBLZGP TY20 4-Pin Screwable Crimpable, docking rows, 4 polig 25A: TY20 4 pin waterproof no welding plug screw crimping male female female female connector electrical cable connector.applicable wire outer diameter range: 6.0~11.5mm. Rated current/voltage: 25 A/380 V; standing voltage: AC 1500 V; contact diameter: Φ2.8 mm x 3; contact resistance: 1 mΩ; insulation resistance: 2000 mΩ; wire thickness: 4 mm²/12AWG.
Key features
- TY20 4 pin waterproof no welding plug screw crimping male female female female connector electrical cable connector.applicable wire outer diameter range: 6.0~11.5mm
- Rated current/voltage: 25 A/380 V; standing voltage: AC 1500 V; contact diameter: Φ2.8 mm x 3; contact resistance: 1 mΩ; insulation resistance: 2000 mΩ; wire thickness: 4 mm²/12AWG
- Connection mode: solderless screw connection; temperature range: -25°C – 85°C; plug-in times: more than 500 times. Threaded wiring for more comfort efficiency and repeated use
- Material: Copper Brass
- Colour: docking rows
Product specifics
- Brand: ZBLZGP
- Category: Terminals & Kits
- Size: 4 polig 25A
- Colour: docking rows
- Material: Copper Brass
- Model: TY20
- Part number: TY20
