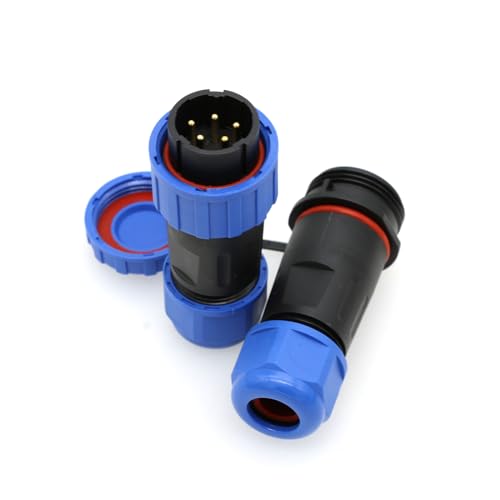

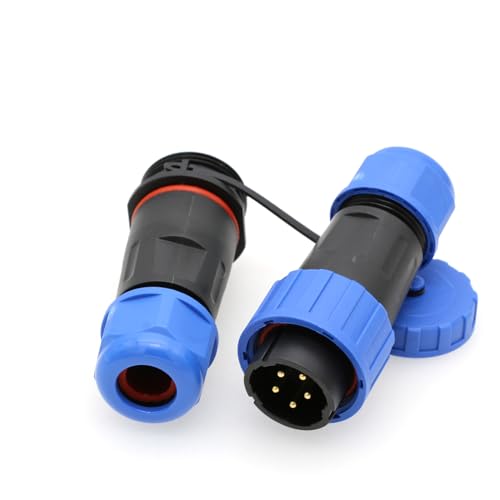

ZBLZGP TY20 5-Pin 10A Waterproof Aviation Plug Screw Crimp Wire, docking rows, 5 polig 10A: TY20 5 Pin Waterproof Non-Weldable Screw Crimped Electrical Cable Male and Female Connector with Outer Diameter 6.0~11.5mm. Rated current/voltage: 10 A/380 V; standing voltage: AC 1500 V; contact diameter: Φ1.8 mm x 5; contact resistance: 2 mΩ; insulation resistance: 2000 mΩ; wire thickness: 1.5 mm²/14AWG.
Key features
- TY20 5 Pin Waterproof Non-Weldable Screw Crimped Electrical Cable Male and Female Connector with Outer Diameter 6.0~11.5mm
- Rated current/voltage: 10 A/380 V; standing voltage: AC 1500 V; contact diameter: Φ1.8 mm x 5; contact resistance: 2 mΩ; insulation resistance: 2000 mΩ; wire thickness: 1.5 mm²/14AWG
- Connection mode: solderless screw connection; temperature range: -25°C – 85°C; plug-in times: more than 500 times. Threaded wiring for more comfort efficiency and repeated use
- Colour: docking rows
- Size: 5 polig 10A
Product specifics
- Brand: ZBLZGP
- Category: Terminals & Kits
- Size: 5 polig 10A
- Colour: docking rows
- Model: TY20
- Part number: TY20
