Description
Details

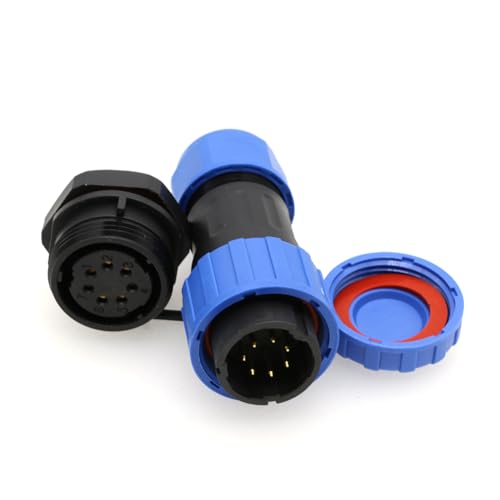

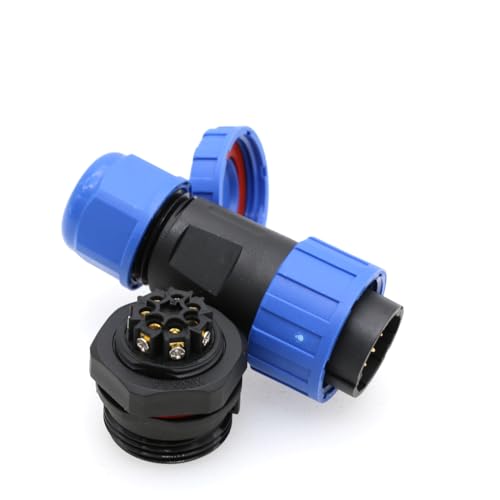

ZBLZGP TY20 7 Pin 5A Waterproof Aviation Connector Panel Mount Socket Solderless Quick Disconnect Screw Pressed Rear Nut Plug: TY20 7 pin nut waterproof no welding plug screw crimping panel mount male female female connector electrical cable connector. Applicable wire outer diameter range: 6.0~11.5mm. Rated current/voltage: 5 A/250 V; voltage strength: AC 1500 V; contact diameter: Φ1 mm x 7; contact resistance: 5 mΩ; insulation resistance: 2000 mΩ; wire thickness: 0.75 mm²/18AWG.
Key features
- TY20 7 pin nut waterproof no welding plug screw crimping panel mount male female female connector electrical cable connector. Applicable wire outer diameter range: 6.0~11.5mm
- Rated current/voltage: 5 A/250 V; voltage strength: AC 1500 V; contact diameter: Φ1 mm x 7; contact resistance: 5 mΩ; insulation resistance: 2000 mΩ; wire thickness: 0.75 mm²/18AWG
- Connection mode: solderless screw connection; temperature range: -25°C – 85°C; plug-in times: more than 500 times. Threaded wiring for more comfort efficiency and repeated use
- Colour: Back Nut Series
- Size: 7 polig 5A
Product specifics
- Brand: ZBLZGP
- Category: Terminals & Kits
- Size: 7 polig 5A
- Colour: Back Nut Series
- Model: TY20
- Part number: TY20
